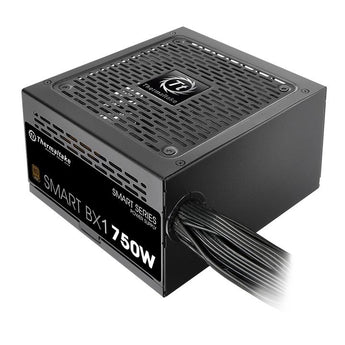

Thermaltake Smart BX1 750W Power Supply 750W, PS-SPD-0750NNSABE-1

Specification

P/N: PS-SPD-0750NNFABx-1
Wattage: 750 W
RGB fan: No
Form factor: ATX
Model: SPD-750AH2NKB | SPD-750AH2NLB | SPD-750AH2NCB
Type: ATX 12V v2.3 and EPS v2.92
Max. output power: 750 W
Color: Black
Dimension (W/H/D): 150 mm (W) x 86 mm (H) x 140 mm (D)
PFC (Power Factor Correction): Active PFC
Good signal strength: 100-500 mhz
Stop time: > 16 ms at 70% full load
Input current: 12A max. | 6 – 15A | Maximum 10A.
Input Frequency Range: 50Hz - 60Hz | 47Hz - 63Hz | 47 Hz - 63 Hz
Input voltage: 100V – 240V~
Operating temperature: 5°C to +40°C | 5°C to +40°C | 0°C to +40°C
Operating Humidity: 20% to 85%, non-condensing | 20% to 85%, non-condensing | 20% to 90%, non-condensing
Storage temperature: -40°C to +55°C | -40°C to +55°C | -40°C to +70°C
Storage Humidity: 10% to 95%, non-condensing | 10% to 95%, non-condensing | 5% to 95%, non-condensing
Cooling system: 12 cm hydraulic bearing fan
Efficiency: Meets 80 PLUS®Bronze with 115Vac input.
MTBF: at least 100,000 hours
Safety Approval: CE/CB/TUV/ UL/ FCC/ BSMI
PCI-E 6+2 PIN: 4
